The Art of Voicing
From Harmonic Structure to Musical Expression
Understanding Close Voicing, Drop 2, Drop 2 & 4, and Cluster Techniques in Big Band Arranging
Introduction: Why Voicing Matters
One of the most fascinating aspects of arranging is the ability to transform a relatively simple melody into an entirely different musical experience without changing the melody itself.
A melody can sound intimate, warm, powerful, transparent, sophisticated, or dramatically tense depending on how the accompanying chord tones are distributed among the instruments.
This is the art of voicing.
In Big Band arranging, voicing is far more than the vertical organization of notes. It determines harmonic density, tonal character, balance, and the expressive possibilities of an instrumental section.
An experienced arranger understands not only how to construct different voicings but, more importantly, when and why to use them.
In this chapter, we will examine four voicing techniques using the same melodic material from my composition Just Take It Easy.
All four examples are written for the traditional five-part Big Band saxophone section:
Alto Saxophone 1
Alto Saxophone 2
Tenor Saxophone 1
Tenor Saxophone 2
Baritone Saxophone
By studying the notation and listening to the accompanying recordings, you will discover how different voicing structures can dramatically influence the musical result.
We will then take the analysis one step further by examining what happens when the same harmonic material is transferred to the trumpet and trombone sections.
Before beginning, however, we should establish a few essential theoretical foundations.
1. Before We Begin: Understanding Music Theory
This chapter introduces concepts that require a working knowledge of music theory.
Readers should already understand:
Intervals and their harmonic relationships
Major, minor, diminished, and augmented triads
Seventh chords and extended jazz harmonies
Chord inversions and chord tones
Basic voice leading
The relationship between melody and underlying harmony
Instrument transposition and written versus sounding pitch
These theoretical foundations are essential because arranging requires more than selecting notes that belong to a particular chord.
An arranger must understand the harmonic function of each note and how it relates to the surrounding voices.
For example, the third and seventh of a dominant seventh chord provide essential information about its harmonic quality and function. Extensions such as the ninth or thirteenth introduce additional color.
The distribution of these notes determines whether the resulting voicing sounds compact, open, transparent, or harmonically dense.
If you are unfamiliar with these concepts, I recommend reviewing the music theory resources listed toward the end of this chapter before continuing.
2. Four Voicing Techniques — One Melody
To demonstrate the practical differences between voicing techniques, I have prepared four arrangements of the same melodic passage from Just Take It Easy.
The purpose is not to demonstrate four unrelated harmonic ideas.
Instead, we will explore how a consistent melody and harmonic framework can be transformed through different approaches to voicing.
Our four examples are:
Close Voicing: Baritone Saxophone doubles the melody one octave lower.
Drop 2 Voicing: Tenor Saxophone 2 doubles the melody one octave lower.
Drop 2 & 4 Voicing: Tenor Saxophone 1 doubles the melody one octave lower.
Cluster Voicing: All five saxophones perform independent voices without melody doubling.
Following the Octave-Doubled Melody
To provide all five saxophonists with their own lines, I have doubled the melody one octave lower in the first three examples.
The particularly interesting aspect is that the octave-doubled melody moves between different instruments depending on the selected voicing technique.
In Close Voicing, the Baritone Saxophone performs the lower-octave melody.
In Drop 2 Voicing, this role moves to Tenor Saxophone 2.
In Drop 2 & 4 Voicing, Tenor Saxophone 1 takes over the lower-octave melody.
For the Cluster Voicing example, no melody doubling is used. Instead, all five saxophones perform independent harmonic voices.
To make these relationships easier to identify, the noteheads belonging to the lower-octave melody are marked in red in both the piano reference and the corresponding saxophone staff.
Readers should follow these red notes carefully when comparing the examples.
How to Study the Musical Examples
Each voicing technique is presented through a consistent combination of written notation and audio demonstrations.
A. Combined Piano and Saxophone Score
Each example begins with a single score containing the piano reference on the first staff, followed by the five saxophone parts.
The piano reference presents the voicing in concert pitch, allowing readers to examine the harmonic construction and spacing between voices.
The saxophone staves show how the same harmonic material is distributed among the five instruments in their conventional transposed notation.
This combined presentation makes it possible to compare the harmonic structure directly with its practical instrumental application.
In Examples 1–3, the red noteheads identify the lower-octave melody.
B. Audio — Saxophone Section Only
The first MP3 recording features only the five saxophones.
Without rhythm-section accompaniment, readers can concentrate on the harmonic character of the selected voicing.
Listen carefully to the spacing between voices, the overall density, the melodic clarity, and the section blend.
C. Audio — Saxophone Section with Rhythm Section
The second MP3 recording introduces the rhythm section.
Readers can now hear the same saxophone voicing within a broader musical context.
Notice how the accompaniment influences the perceived harmonic weight, balance, and overall character.
A voicing that sounds particularly exposed when performed by saxophones alone may create a different impression when supported by the rhythm section.
An Important Listening Recommendation
I encourage readers to follow the examples in the order presented.
First, study the combined score.
Next, listen to the saxophone section alone.
Finally, compare it with the recording that includes the rhythm section.
Understanding a voicing on paper is only the beginning. Hearing how it behaves in different musical contexts develops practical arranging judgment.
One additional consideration is the treatment of non-chord tones.
Not every note in a melody necessarily belongs to the underlying harmony. Passing tones, neighboring tones, and chromatic approach notes may create melodic movement while the remaining instruments continue to outline the established chord.
Other situations may call for additional harmonization techniques.
We will explore these possibilities in greater detail in Chapter 9.
A Note on Listening
For the best listening experience, I recommend using good-quality headphones or in-ear monitors with a balanced, natural sound reproduction.
This will help you hear the subtle differences in harmonic spacing, instrumental balance, and tonal character between the four voicing techniques.
Pay particular attention to how each voicing sounds with the saxophone section alone compared with the full rhythm-section accompaniment.
3. Close Voicing — Compact and Direct
Close voicing is one of the fundamental techniques in jazz arranging.
In a conventional four-part close-position voicing, the selected notes are placed as closely together as the harmonic structure permits, generally within the span of an octave.
The melody usually occupies the highest voice, with the remaining voices distributed beneath it.
This creates a compact harmonic structure in which the individual notes are closely connected.
Applying Close Voicing to the Five-Saxophone Section
In our first example, the upper four saxophones establish the close-position harmonic structure.
The Baritone Saxophone doubles the melody one octave lower.
This provides a fifth instrumental line without introducing an additional independent chord tone.
The octave doubling reinforces the melodic contour while giving the section a fuller sound.
The red noteheads identify the lower-octave melody performed by the Baritone Saxophone.
Musical Characteristics
Close voicing can produce a focused, unified section sound.
It is especially useful when an arranger wants to emphasize a melodic phrase through coordinated harmonic movement.
However, close voicing is not equally effective in every register.
In a relatively high register, closely spaced notes may sound brilliant and clearly defined.
When the same structure is moved into a lower register, the result can become excessively dense or muddy.
This is particularly important when writing for lower saxophones or trombones.
An arranger should therefore consider both the harmonic structure and the actual sounding register before deciding to use close voicing.

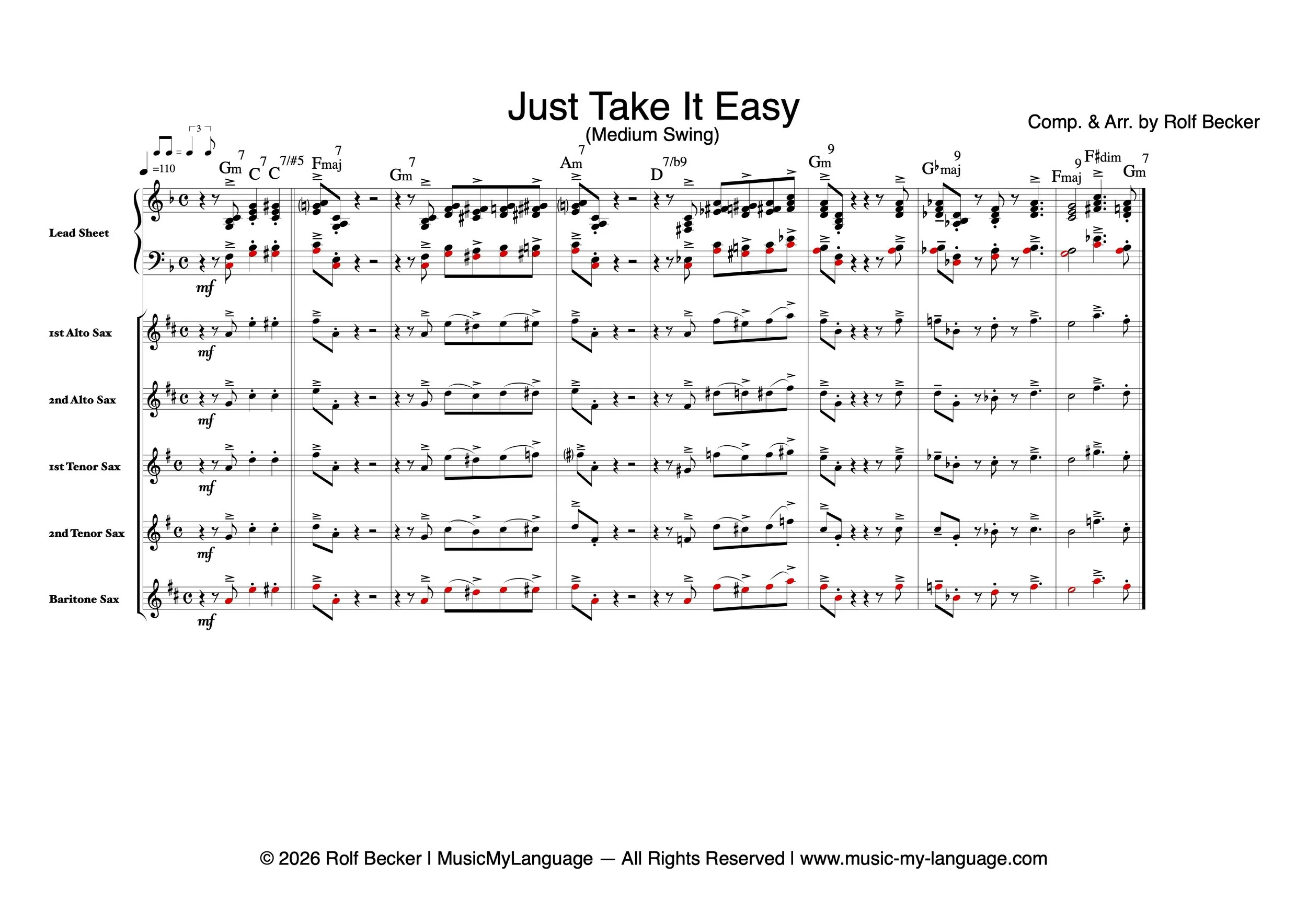

Musical Example 1 — Close Voicing
Five-Saxophone Section — Baritone Saxophone Doubles the Melody One Octave Lower
A. Combined Score — Piano Reference and Five Saxophones
Example 1 — Close Voicing
Four-part Close Voicing with the melody doubled one octave lower by the Baritone Saxophone. The red noteheads identify the octave-doubled melody.
B. Audio — Saxophones Only
(Close Voicing — Saxophones Only)
C. Audio — Saxophones with Rhythm Section
(Close Voicing — Saxophones and Rhythm Section)
Listening focus: Notice the compact harmonic structure and the additional weight created by the Baritone Saxophone's octave doubling. Compare the isolated saxophone sound with the version supported by the rhythm section.
4. Drop 2 Voicing — Creating Space Within the Harmony
Drop 2 voicing is derived from a close-position chord structure.
The second-highest voice is lowered by one octave, creating a more open distribution of chord tones.
This technique preserves the selected harmonic material while changing its spacing and register.
The resulting sound is often more spacious than close voicing.
Applying Drop 2 to the Five-Saxophone Section
In our second example, the harmonic structure is arranged using the Drop 2 technique.
However, an important change occurs in the distribution of the octave-doubled melody.
Instead of the Baritone Saxophone, Tenor Saxophone 2 now doubles the melody one octave lower.
This demonstrates how the distribution of the harmonic voices influences the assignment of instrumental parts.
The red noteheads identify the lower-octave melody performed by Tenor Saxophone 2.
Compare this carefully with the preceding Close Voicing example.
Musical Characteristics
Drop 2 voicing can provide greater separation between the upper and lower voices.
This may improve clarity in certain registers and create a more open harmonic texture.
However, the effectiveness of Drop 2 depends on the melody's register and the instrumental section performing the passage.
A voicing that works beautifully for saxophones may require adjustment when transferred to trumpets or trombones.
The arranger must also consider the distance between the lowest voices and the resulting balance within the section.

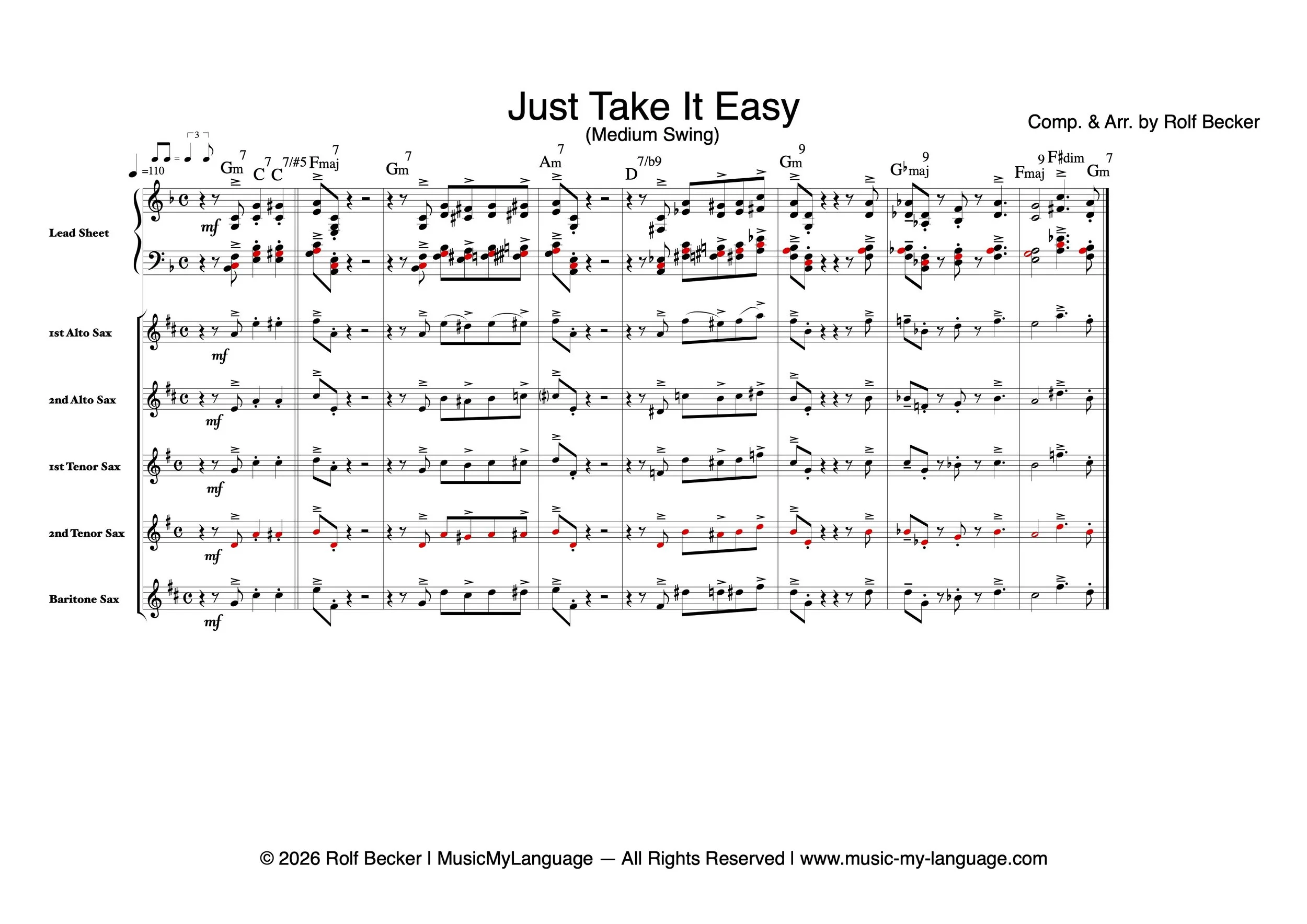

Musical Example 2 — Drop 2 Voicing
Five-Saxophone Section — Tenor Saxophone 2 Doubles the Melody One Octave Lower
A. Combined Score — Piano Reference and Five Saxophones
Example 2 — Drop 2 Voicing
Four-part Drop 2 Voicing with the melody doubled one octave lower by Tenor Saxophone 2. The red noteheads identify the octave-doubled melody.
B. Audio — Saxophones Only
(Drop 2 Voicing — Saxophones Only)
C. Audio — Saxophones with Rhythm Section
(Drop 2 Voicing — Saxophones and Rhythm Section)
Listening focus: Compare this example directly with Close Voicing. How does the wider spacing affect the harmonic character? Notice that the octave-doubled melody has moved from Baritone Saxophone to Tenor Saxophone 2.
5. Drop 2 & 4 Voicing — Expanding the Harmonic Structure
Drop 2 & 4 voicing develops the principle of open harmony further.
Beginning with a conventional four-part close-position structure, the second-highest and fourth-highest voices are lowered by one octave.
This creates a wider distribution of chord tones and a distinctly different harmonic texture.
Applying Drop 2 & 4 to the Five-Saxophone Section
In our third example, the wider spacing requires another change in the distribution of the instrumental voices.
Tenor Saxophone 1 now doubles the melody one octave lower.
The red noteheads identify this octave-doubled melody.
By comparing Examples 1, 2, and 3, readers can observe how the lower-octave melody moves progressively through the saxophone section:
Baritone Saxophone → Tenor Saxophone 2 → Tenor Saxophone 1
This is one of the most instructive aspects of our musical demonstrations.
Although the melody and underlying harmonic framework remain consistent, the distribution of the voices changes considerably.
Musical Characteristics
Drop 2 & 4 voicing can produce a broad, open sound with considerable separation between the upper and lower voices.
Depending on the musical context, this may create a more spacious and orchestral character.
However, wider spacing introduces additional challenges.
The lowest voices may move into registers that are unsuitable for the intended instruments, while the overall distribution may become too widely separated to maintain the desired section blend.
The arranger must carefully examine the actual pitches rather than assuming that an established voicing technique will automatically produce a satisfactory result.

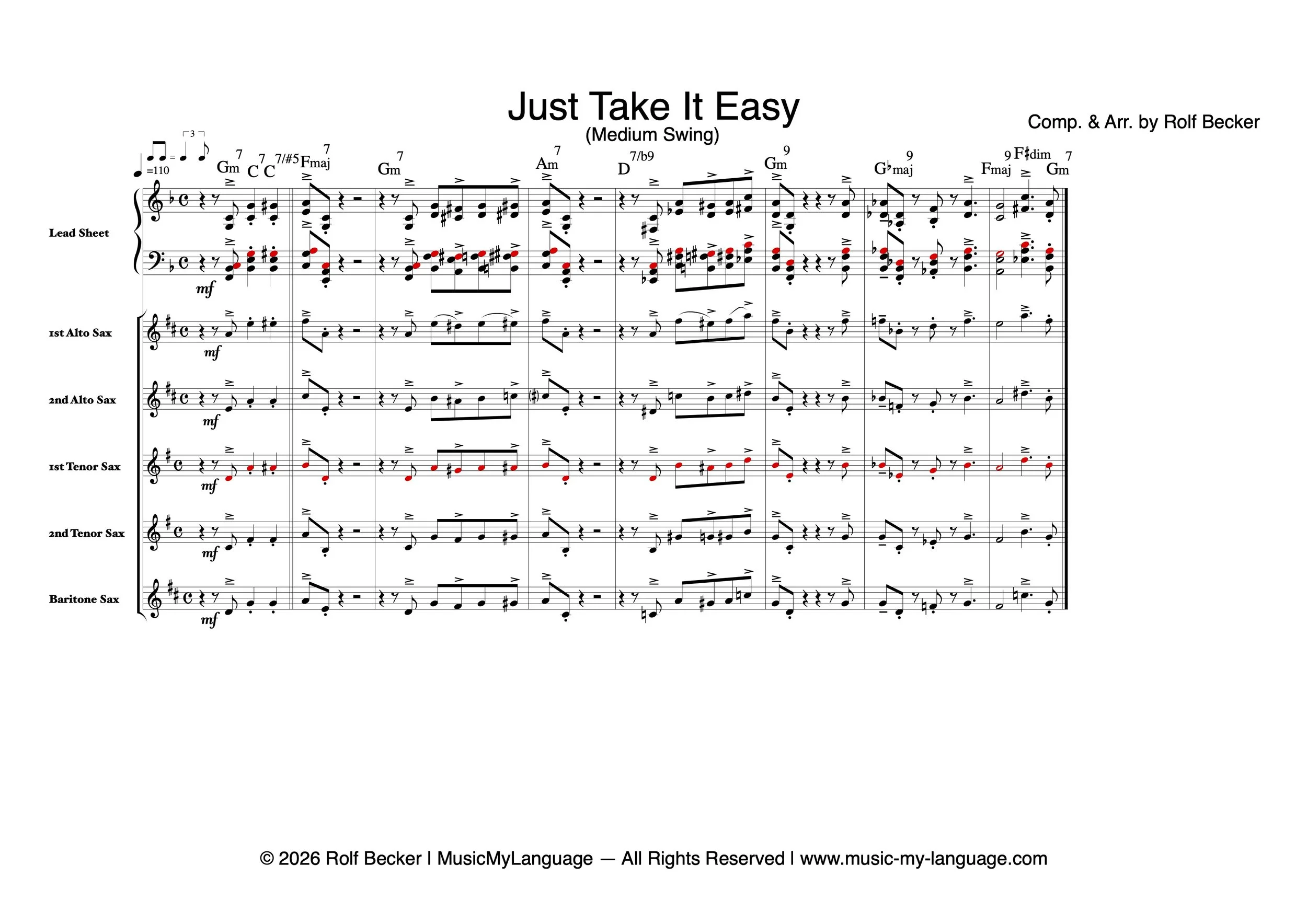

Musical Example 3 — Drop 2 & 4 Voicing
Five-Saxophone Section — Tenor Saxophone 1 Doubles the Melody One Octave Lower
A. Combined Score — Piano Reference and Five Saxophones
Example 3 — Drop 2 & 4 Voicing
Four-part Drop 2 & 4 Voicing with the melody doubled one octave lower by Tenor Saxophone 1. The red noteheads identify the octave-doubled melody.
B. Audio — Saxophones Only
(Drop 2 & 4 Voicing — Saxophones Only)
C. Audio — Saxophones with Rhythm Section
(Drop 2 & 4 Voicing — Saxophones and Rhythm Section)
Listening focus: Observe how the wider distribution changes the harmonic character compared with Close and Drop 2 voicings. Pay particular attention to the octave-doubled melody in Tenor Saxophone 1 and the overall balance of the lower voices.
6. Cluster Voicing — Harmonic Density and Color
Cluster voicing introduces another dimension to harmonic writing.
Rather than relying exclusively on conventional chord-tone spacing, cluster structures place selected notes close together, frequently incorporating seconds or other tightly spaced intervals.
This can create a distinctive harmonic color.
Depending on the selected pitches, instrumentation, and register, clusters may sound delicate, shimmering, intense, or deliberately dissonant.
Applying Cluster Voicing to the Five-Saxophone Section

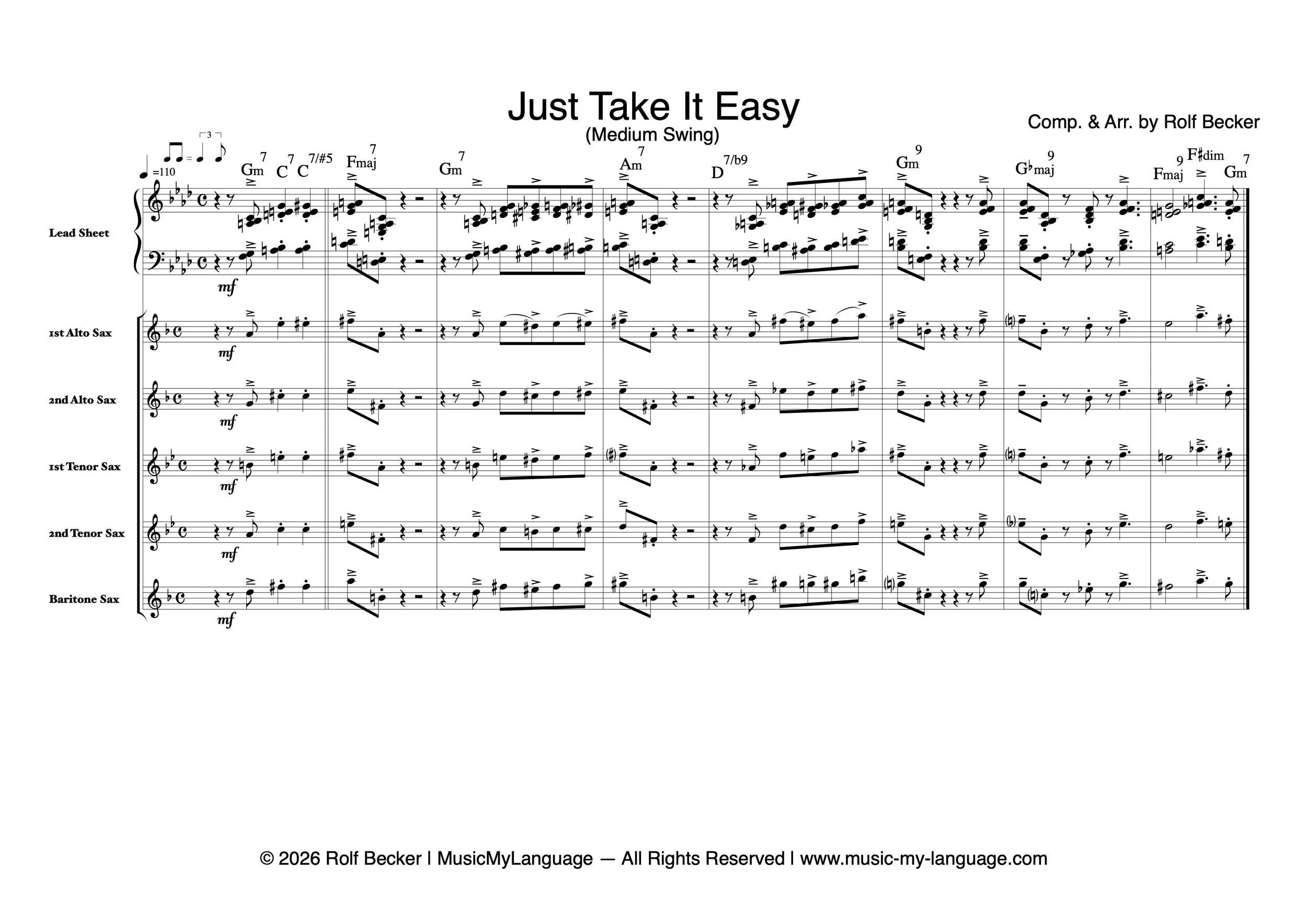

Our fourth example uses a different approach from the preceding three examples.
There is no octave melody doubling.
Instead, all five saxophones perform their own independent voices.
Each instrument contributes a separate note to the overall harmonic structure without duplicating another voice.
This creates a five-part texture in which the close relationships between individual notes become particularly important.
Extending the Harmony
An important consideration when constructing cluster voicings is that the original chord structure may need to be extended to accommodate the desired harmonic density.
For example, a conventional Fmaj9 chord may be expanded to include additional color tones.
A possible resulting structure would be:
Fmaj6/7/9/#11
This represents an F-major harmony containing the added sixth (or thirteenth), major seventh, ninth, and raised eleventh.
The arranger can select the required notes to create a distinctive cluster texture.
However, writing every available extension into a chord symbol is not always necessary or desirable.
In practical Big Band arranging, particularly when preparing parts for the rhythm section, complicated chord symbols may be simplified to reflect the underlying harmonic function.
The specific extensions and voicings can then be written directly into the instrumental parts.
This avoids unnecessarily complicating the rhythm-section notation while preserving the intended harmonic character of the arrangement.
Musical Characteristics
Cluster voicings can be particularly effective in ballads and contemporary jazz compositions.
Their close intervallic relationships can produce rich harmonic colors and expressive tension.
However, clusters should be used wisely.
A cluster written in the upper register of a saxophone or trumpet section can produce a very different effect from the same structure in the lower trombone register.
Low-register clusters may become difficult to distinguish clearly, particularly when performed with considerable volume or combined with dense rhythm-section accompaniment.
Furthermore, the desired effect depends on the actual intervallic structure and the relationship between the cluster and the underlying harmony.
A cluster should never be used merely because it appears sophisticated on the page.
Its musical function must be clear.
Musical Example 4 — Cluster Voicing
Five-Saxophone Section — Five Independent Voices Without Melody Doubling
A. Combined Score — Piano Reference and Five Saxophones
Example 4 — Cluster Voicing
Five independent saxophone voices creating a harmonically dense cluster texture, without octave doubling or duplicated notes.
B. Audio — Saxophones Only
(Cluster Voicing — Saxophones Only)
C. Audio — Saxophones with Rhythm Section
(Cluster Voicing — Saxophones and Rhythm Section)
Listening focus: Compare the harmonic density, tension, and tonal character with the preceding three examples. Notice how the absence of octave doubling and the inclusion of additional harmonic color tones influence the overall sound.
7. Choosing the Right Voicing — Practical Recommendations
After studying and listening to all four examples, we must address an essential question.
Which voicing technique should an arranger choose?
The answer depends on the musical context.
Close and Drop 2 — Common and Versatile
Close Voicing and Drop 2 Voicing are among the most commonly used techniques in conventional Big Band section writing.
Both approaches offer practical possibilities for harmonizing melodies while maintaining a recognizable and balanced section sound.
Their flexibility makes them particularly useful for arrangers developing their understanding of harmonized section writing.
Drop 2 & 4 — Use with Greater Caution
Drop 2 & 4 creates a more widely spaced harmonic structure.
While this can produce a broad and attractive sound, the technique is generally less suitable for fast-moving melodic passages.
The wider distribution of voices may create technically demanding movements, particularly when individual instruments must negotiate large intervals or rapid changes of register.
Furthermore, Drop 2 & 4 should not be used indiscriminately in low registers.
The resulting lower voices may become acoustically unclear or technically impractical.
For these reasons, an arranger should evaluate the melody's register, tempo, and instrumental requirements before choosing this approach.
Cluster Voicing — A Distinctive Harmonic Color
Cluster Voicing offers a different harmonic character.
Its dense intervallic structure can be particularly effective in ballads and contemporary music.
However, the technique should be used selectively.
Clusters can introduce expressive tension and rich harmonic colors, but excessive use may reduce contrast and make the overall arrangement unnecessarily dense.
The most effective voicing is not necessarily the most complicated one. It is the one that best serves the music.
8. Can the Same Voicing Work for Trumpets or Trombones?
After listening to the four saxophone examples, we can take our analysis one step further.
Suppose we want to use the same melody from Just Take It Easy with the trumpet or trombone section.
Would the same voicing work equally well?
This question connects directly with Chapter 7, where we explored instrumental notation, transposition, and practical playing ranges.
To demonstrate the practical consequences, I have prepared two additional score excerpts based on the Close Voicing from Example 1.
First: Adjusting the Number of Voices
Our saxophone example uses five instruments.
A conventional Big Band trumpet section consists of four trumpets, while the trombone section generally consists of three tenor trombones and one bass trombone.
Therefore, when adapting the example to these four-part sections, we omit the lower-octave melody doubling.
The fundamental four-part harmonic structure remains intact.
Although the octave reinforcement disappears, the essential harmonic character of the voicing can be preserved.
Example A — Close Voicing for Four Trumpets

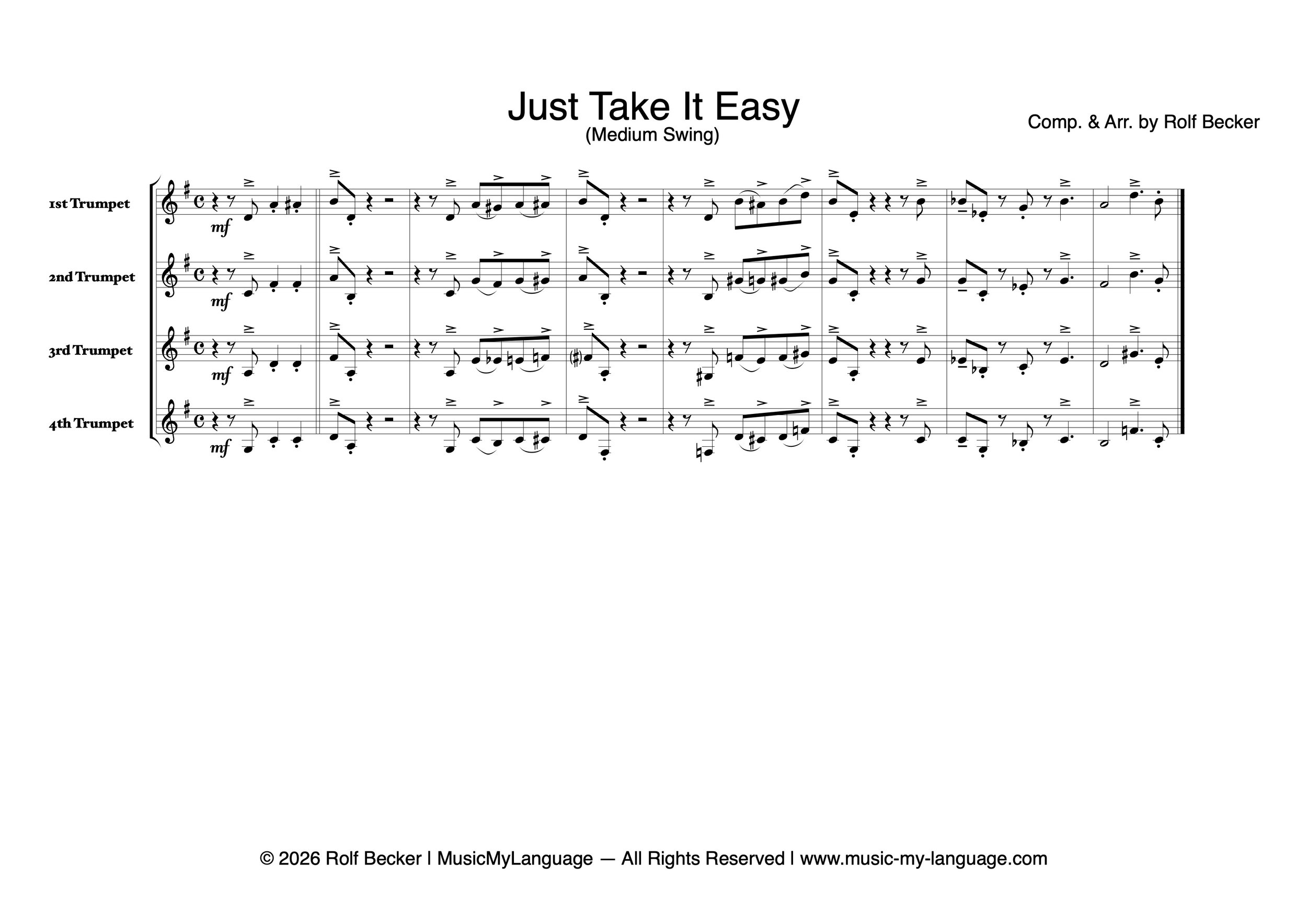

Example 5 — Close Voicing for Four Trumpets
The Close Voicing from Example 1, adapted for four trumpets without octave doubling. This example illustrates the importance of evaluating instrumental registers before transferring a voicing between sections.
When we transfer the same sounding pitches to the trumpet section, an immediate problem becomes apparent.
The voicing occupies a register that is too low to achieve the desired characteristic trumpet-section sound.
Although some of the individual notes may be technically playable, the overall texture does not provide the brilliance, clarity, or projection normally associated with effective trumpet-section writing.
This demonstrates an important distinction between a technically possible arrangement and a musically effective one.
Example B — Close Voicing for Four Trombones

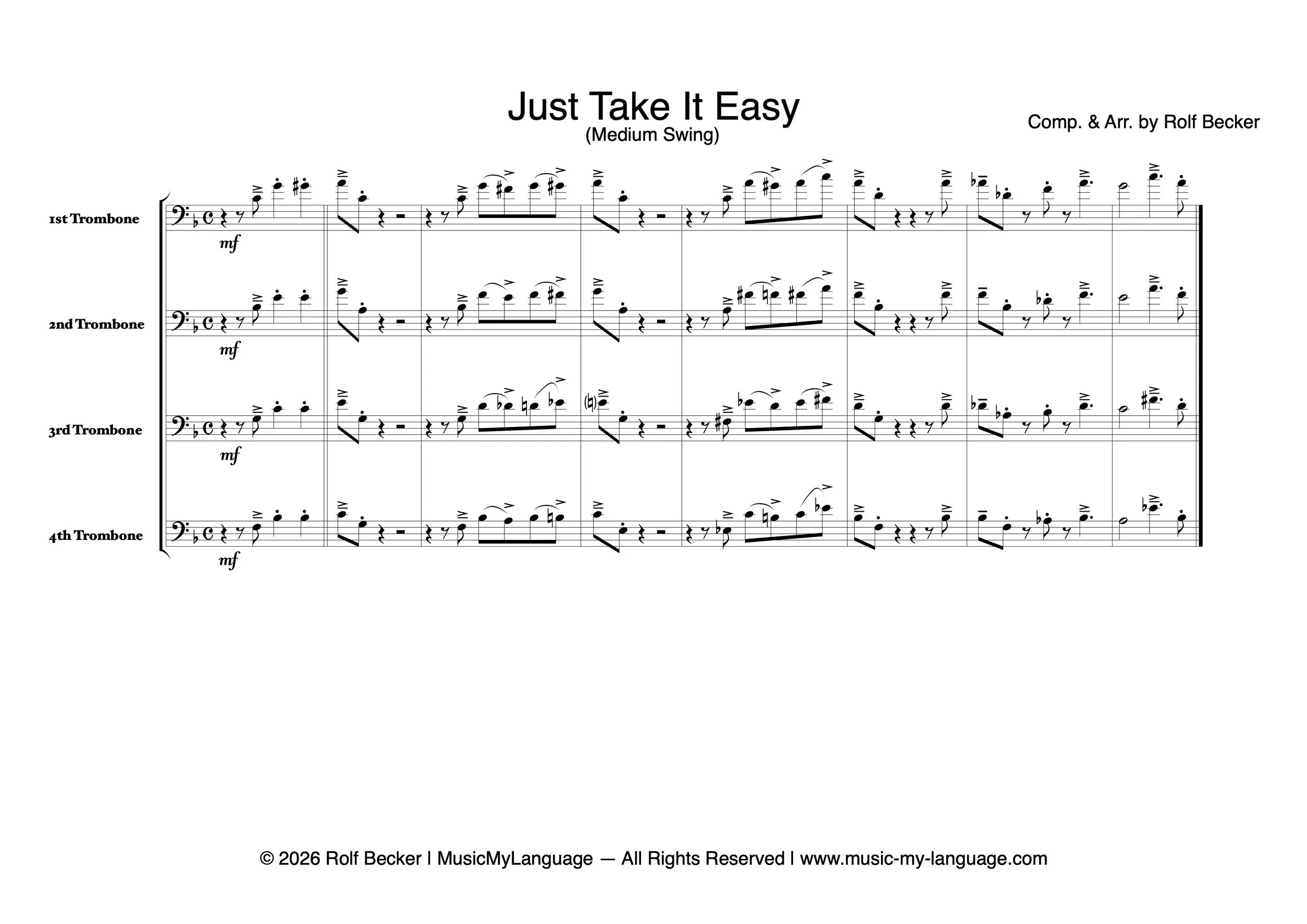

Example 6 — Close Voicing for Four Trombones
The same four-part Close Voicing adapted for the trombone section, illustrating the upper-register demands and technical considerations for professional versus student ensembles.
For the trombone section, the situation is quite different.
The same harmonic material reaches into the upper practical register of the instruments.
Professional trombonists with sufficient range, flexibility, and endurance may be able to perform the passage effectively.
However, for student or intermediate ensembles, the demands could be excessive.
The arranger must therefore consider not only whether the notes are technically playable but also whether the passage can be performed comfortably, accurately, and with the desired musical expression.
The Arranger's Responsibility
These two examples illustrate an essential principle:
A harmonically correct voicing is not automatically an effective instrumental voicing.
Before constructing or transferring a voicing, an arranger must consider:
The actual sounding register of the melody
The practical playing ranges of the intended instruments
The technical flexibility required by the passage
The desired section sound
The abilities of the musicians performing the arrangement
Only after considering these factors should the arranger determine the most appropriate voicing structure.
Do not select a voicing first and then force the instruments to accommodate it. Understand the instruments and their musical possibilities before constructing the voicing.
This principle is fundamental to effective orchestration.
9. The Most Important Question: Which Voicing Should You Choose?
After studying these techniques, beginning arrangers may naturally ask:
Which one is best?
The answer is simple: there is no universally superior voicing technique.
The appropriate choice depends on the musical situation.
A technically correct voicing can still be a poor arranging decision.
This distinction separates theoretical knowledge from practical orchestration.
Consider the Musical Character
What should the passage communicate?
A lyrical saxophone melody may benefit from a warm, unified texture.
A powerful ensemble passage may require greater harmonic weight and broader orchestration.
A dramatic transition might benefit from the tension of a cluster.
The intended musical expression should guide the voicing decision.
Consider the Instrumental Register
Every instrument has its own acoustic characteristics.
The same harmonic structure can sound completely different when assigned to saxophones, trumpets, or trombones.
A voicing may be technically playable yet acoustically ineffective.
For example, a closely spaced chord in the lower trombone register may sound heavy and indistinct.
Moving the voicing higher, changing its spacing, or selecting a different distribution of chord tones may improve clarity.
Likewise, a high trumpet voicing may produce considerable brilliance but become physically demanding during an extended passage.
The arranger must understand the difference between an instrument's theoretical range, practical playing range, and most effective musical register.
Consider the Musicians' Abilities
Writing for professional musicians is not the same as writing for an educational ensemble.
Advanced performers may comfortably handle demanding registers, complex rhythms, difficult intervals, and challenging articulation patterns.
Beginning or intermediate musicians require a different approach.
An effective arranger adapts the music to the ensemble without unnecessarily compromising the musical idea.
Consider Section Writing Versus Tutti Writing
A voicing that sounds excellent when performed by an isolated saxophone section may behave differently within a full Big Band tutti.
When saxophones, trumpets, trombones, and rhythm section perform simultaneously, the overall harmonic texture becomes considerably more complex.
The arranger must consider:
Which section carries the primary melody?
Which voices reinforce the harmony?
Are instruments competing within the same register?
Does the orchestration provide sufficient contrast?
Are lower voices reinforcing the harmonic foundation or creating unnecessary density?
Is the intended voicing appropriate for an individual section, or does it become effective only within the complete ensemble texture?
Some voicing choices may be especially useful in a powerful tutti passage but less convincing when assigned to a single section.
Others may be beautiful in exposed writing yet lose their individual character when surrounded by additional instruments.
Understanding these relationships is essential for effective Big Band orchestration.
10. From Theory to Practical Arranging
The purpose of learning voicing techniques is not to memorize a collection of formulas.
It is to develop the ability to make informed musical decisions.
When working on a new arrangement, I recommend the following process.
First, establish the melody and harmonic framework.
Understand the chord progression and identify the notes that define its harmonic character.
Second, determine the desired musical expression.
Should the passage sound compact, broad, transparent, powerful, or tense?
Third, examine the instrumental ranges and technical requirements.
Before distributing the harmony, evaluate whether the intended instruments can perform the passage comfortably and effectively.
Fourth, choose an appropriate voicing structure.
Experiment with Close, Drop 2, Drop 2 & 4, Cluster, or other harmonic distributions.
Fifth, listen critically.
Do not rely exclusively on the appearance of the score.
Playback can be useful during preparation, but the final judgment should also consider the sound and response of real musicians.
Finally, evaluate the passage within the complete arrangement.
A voicing should support the musical structure, not merely sound impressive in isolation.
11. A Practical Listening Exercise
After listening to all four examples from Just Take It Easy, return to the beginning and compare them once more.
This time, ask yourself:
Which voicing produces the most compact harmonic sound?
Which example creates the greatest sense of openness?
How does the octave-doubled melody change as it moves from Baritone Saxophone to Tenor Saxophone 2 and Tenor Saxophone 1?
Which example introduces the greatest harmonic tension?
How does the Cluster Voicing sound without any duplicated notes?
Which voicing would you choose for an exposed saxophone melody?
Would you make a different choice for a powerful Big Band tutti?
Would the same voicing work equally well for trumpets or trombones?
How would your decision change if you were arranging for intermediate rather than professional musicians?
There may be more than one convincing answer.
That is precisely the point.
Arranging is not simply the application of theoretical rules. It is the art of making musical choices.
12. Further Voicing Techniques — Beyond This Chapter
The four techniques demonstrated in this chapter provide a foundation for understanding harmonized Big Band section writing.
However, the possibilities extend considerably further.
In the upcoming expanded book version of Inside The Arrangement, I plan to explore additional approaches, including:
Voicing techniques involving instrumental doublings, such as flutes
Combining Flutes, Clarinets, and Bass Clarinet
Embedding the melody within a harmonic structure rather than placing it exclusively in the highest voice
Positioning the melody in the lowest voice of an instrumental section
Advanced voicing techniques for full Big Band tutti passages
These approaches offer additional possibilities for creating distinctive orchestral textures and expanding the expressive range of an arrangement.
However, introducing too many techniques at once can make the learning process unnecessarily complicated.
For the present chapter, I recommend concentrating on the four demonstrated voicing methods and developing a clear understanding of their practical applications.
Readers wishing to explore advanced arranging techniques are encouraged to consult the recommended literature below.
13. Recommended Study Resources
A. Music Theory Foundations
A Complete Guide to Music Theory — Arabesque Conservatory
https://www.arabesqueconservatory.com/blog/a-complete-guide-to-music-theory/
An introduction to fundamental music theory concepts, including intervals, scales, chords, and notation.
These principles form the foundation for both classical and jazz arranging.
Jazz Theory — PDF Study Resource
https://www.saxonline.it/wordpress/wp-content/uploads/2011/10/JazzTheory.pdf
An additional resource for readers who wish to strengthen their understanding of jazz harmony and related theoretical concepts.
B. Advanced Arranging and Orchestration
Rayburn Wright — Inside the Score
https://sheetmusiclibrary.website/rayburn-wright-scores/
An analytical study of eight jazz ensemble arrangements by Sammy Nestico, Thad Jones, and Bob Brookmeyer.
The book explores voicings, melodic construction, orchestration, textures, and other essential arranging techniques.
It offers an opportunity to study how established arrangers apply harmonic and orchestral principles in actual Big Band scores.
Don Sebesky — The Contemporary Arranger, Definitive Edition
https://www.goodreads.com/book/show/2727538-the-contemporary-arranger-definitive-edition
A comprehensive reference for arrangers seeking to expand their understanding of orchestration, instrumental writing, and contemporary arranging techniques.
Bill Dobbins — Jazz Arranging and Composing: A Linear Approach
https://www.amazon.com/dp/3892210063
An advanced arranging reference emphasizing linear writing, voice leading, melodic development, and the interaction between individual instrumental lines.
This approach provides an important perspective beyond the purely vertical construction of chord voicings.
These books are recommended for readers who wish to move beyond introductory theory toward a deeper understanding of professional arranging.
14. Final Thoughts: The Art Behind the Technique
Voicing is one of the most powerful expressive tools available to an arranger.
The same melody can acquire entirely different characteristics through relatively small changes in harmonic spacing, chord-tone distribution, and instrumental register.
Close voicing can create unity and concentration.
Drop voicings can introduce openness and a broader harmonic texture.
Cluster voicings can create distinctive colors and tension.
Octave doubling can reinforce the melody, while alternative melody placement offers additional possibilities for shaping the overall section sound.
Yet none of these techniques guarantees a successful arrangement.
The true challenge is knowing when to use them, how to adapt them to the available instruments, and how to integrate them into the larger musical structure.
This requires theoretical knowledge, practical experience, critical listening, and an understanding of the musicians performing the music.
The art of voicing is not simply knowing how to distribute notes. It is knowing which notes belong in which register, on which instruments, and at which musical moment.
That is where arranging becomes an art.
Coming Next — Chapter 9: Harmonizing Non-Chord Tones
Passing Notes, Approach Notes, and the Art of Melodic Harmonization
Not every note in a melody belongs to the underlying chord.
Passing notes, neighboring tones, and chromatic approaches create movement, expression, and melodic interest.
But how should an arranger harmonize these notes when writing for a saxophone, trumpet, or trombone section?
Should the underlying harmony remain unchanged, or should the accompanying voices move with the melody?
In Chapter 9, we will explore practical techniques for harmonizing non-chord tones, supported by musical examples and audio demonstrations.
Coming in Chapter 10: Writing Big Band Vocal Charts — The Art of Serving the Vocal Artist.
MusicMyLanguage — Learn. Practice. Perform.
Inside The Arrangement — An Educational Series on Professional Big Band Writing
